Overview

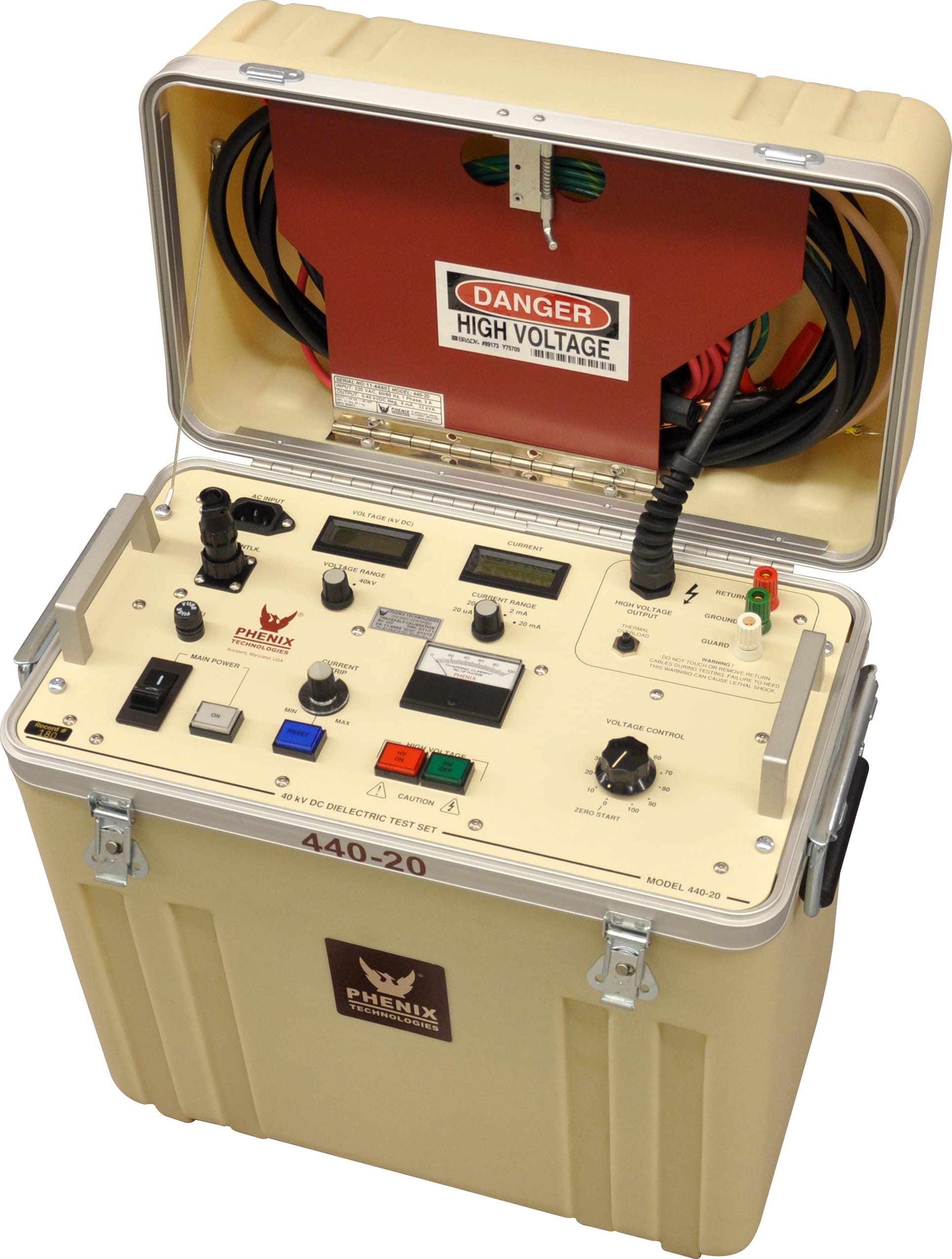

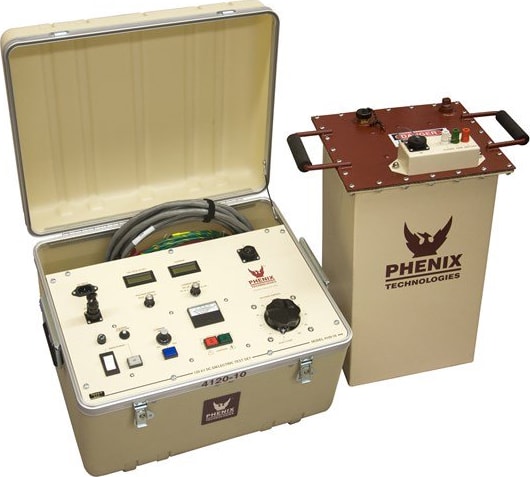

Phenix Technologies offers a line of portable 40-200 kV DC Hipots with many advanced features. The high voltage is generated by a filtered high voltage doubler circuit, that is purpose built by Phenix for the exacting demand of high voltage testing. A solenoid operated discharge switch quickly discharges the load after testing. All high voltage components are housed in an oil filled aluminum sealed grounded dead tank. A shielded high voltage lead allows the operator to safely connect the high voltage output to the test object. The high mA charging current, which is standard with all Phenix DC Hipots allows the operator to quickly and efficiently charge large capacitive loads. In the standard series the precision metering measured off of the high voltage output indicates the output voltage and leakage current on large easy to read digital meters. An analog meter is provided for reading charging current. The “B” series has a 7” Full-Color Touch-Screen display with auto-ranging current meters plus many additional features. The “B” series include a separate always active internal guard mode and will calculate insulation resistance continuously. Additional safety features include an instantaneous and thermal overload protection for the operator and the test object. The proven and rugged design coupled with precision metering and ease of use have made Phenix DC Hipots the optimal choice.Standard Series - Design and Safety Features
- Main power circuit breaker switch (with indicator)
- External warning circuit provision for safety devices such as flashing light
- High Voltage ON/OFF pushbuttons with indicators
- Manual control of output voltage
- Zero Start interlock
- External interlock provision
- Overload circuit adjustable from 10% to 110% of rated current
- Output overload indicator with reset button
- Slow and fast acting transient protection on all meters and relays
- Built-in discharge circuit
- Very low ripple, <2% RMS at full output
- 3 ½ digit, multi-range metering
- Analog charging current meter
- Guard mode for accurate current measurements
- Thermal resettable overload protecting high voltage transformer primary circuits
"B" Models - Design and Safety Features
- Main power circuit breaker switch
- External warning circuit provision for safety devices such as flashing light
- High Voltage ON/OFF buttons with indicators
- Emergency Off pushbutton (Locking)
- Automatic voltage control or manual voltage control via infinity dial
- USB port for data acquisition via USB drive
- WiFi control from PC (Requires optional software)
- Auto-ranging meters for total current and specimen return current
- Return lead safety locking retention clip
- Shielded test current measurement lead
- Built-in discharge circuit
- Very low ripple, <2% RMS at full output
- 7” Full-color touch-screen display
