Overview

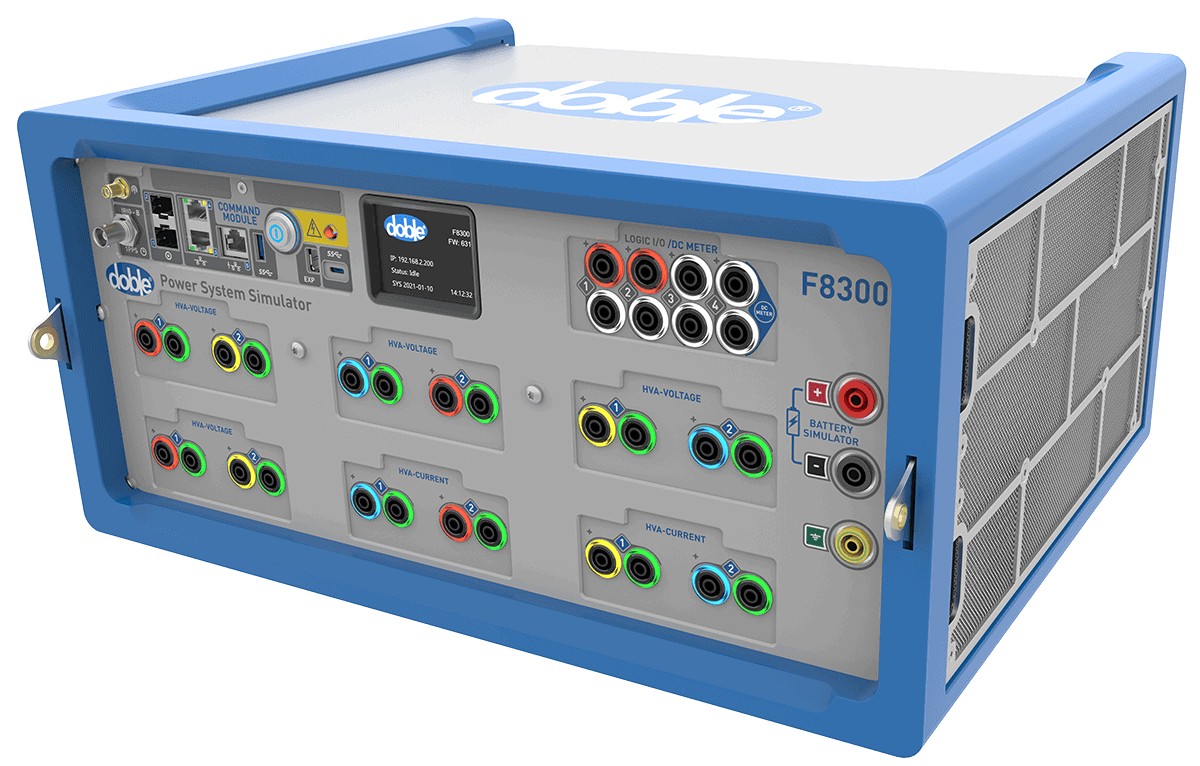

F8000-series Power System Simulators are modular instruments configured from a versatile hardware platform that enables numerous chassis and module combinations. The expanded F8300 model is a seven-module instrument that is available in five standard configurations. Each unique configuration provides particular capabilities for a variety of conventional and digital protection testing applications.

Features

• Interchangeable 'Plug and Play' Modules (up to 7) to enable flexibility in customizing your test set to what you require and only paying for what you need.
• State-of-the-art components for precise analog and digital testing.​
• Internal timing and synchronization that supports GPS, IRIG-B, PTP, USB, and copper/fiber Ethernet.​
• Chassis designed for easy replacements of modules.​
• Can be adapted for new test cases by installing different F8 modules.​
• Provides flexibility, features, and performance needed for requirements of Generation, Transmission, and Distribution protection testing.​
• Seamless compatibility with your Protection Suite v5 and RTS v7 test procedures.​
• IEC 61850-compliant.​
• Color programmable LED rings for visual recognition of sources and contact status.​
• Corner-and-edge protective bumpers and carrying accessories for portable units or mounting hardware for installing units in 19” racks.
