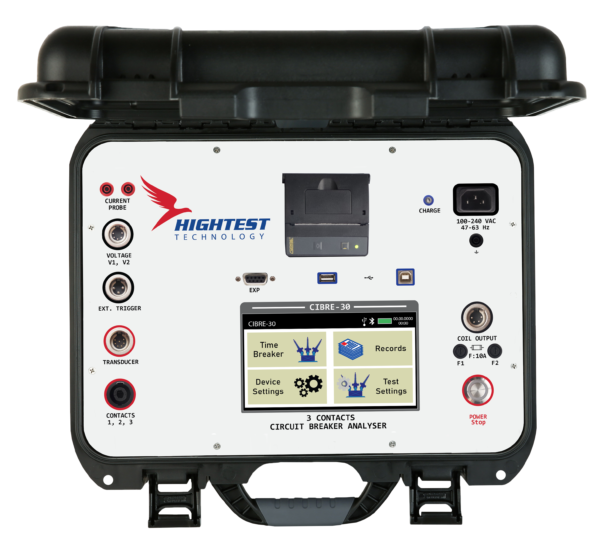

CIBRE-30 Series, 3-Contact Circuit Breaker Analysers are designed using advanced engineering technology to test contact timings of circuit-breakers.
CIBRE-30 Series has fast, easy and accurate measurement features by its user-friendly software.
CIBRE-30 Series is battery-powered device (optional feature), which allows users to perform tests even without power supply during field tests.
Why do we need to test circuit breakers?
It is very important to test circuit breakers regularly. Contact Timing Tests and Motion tests are performed to determine the optimal performance of the breakers. The testing can determine improper breaker operations in case of system fault and to improve system reliability.
Contact Timing Tests
Contact timing tests are performed to compare the breakers’ main & resistor contact performance against the manufacture’s specifications.
The breakers OPEN, CLOSE, OPEN-CLOSE, CLOSE-OPEN & OPEN-CLOSE-OPEN operations are timed in milliseconds (ms) and cycles and then compared with the manufacturers’ specification to determine the performance of the circuit breaker.
Motion Tests
CIBRE-30 Series can perform motion tests such as Transducer Speed, Stroke and Bounce. Slower transducer speed can reduce the breaking capacity of the main contact while faster speed can cause mechanical damage to the damping components and cause excessive vibration. So, it is necessary to test the transducer speed to compare it with manufacture’s specifications.
CIBRE-30 Series features with a 7-inch large colour touch display, which is visible under both bright sunlight as well as dim light conditions.
Operators can easily print the measurement results with the 2.28-inch built-in printer of CIBRE-30 Series. The results can also save to a USB flash drive or to the device’s internal memory.
Multi-language capability and user-friendly operation menu make it easy to control CIBRE-30 Series.
CIBRE-30 Series devices are light-weight, compact and rugged with the protection of IP67 (case closed) which makes it perfect for the field test.
Features
Contact Timing (O, C, O-C, C-O and O-C-O)
Motion Tests (Transducer Speed, Stroke, Bounce)
3 Dry Contact Inputs
Timing Accuracy: 0.05% rdg ± 0.1 ms
Timing Windows: 1s, 10s & 20s
Contact Detection Range: Closed ≤20 Ω &
Open ≥5000 Ω
Optional Battery
Optional Bluetooth Communication
2.28” Built-in Printer
7” TFT Touch Colour Display
Light-weight and Portable
Protection Class IP67 (case closed)
