Overview

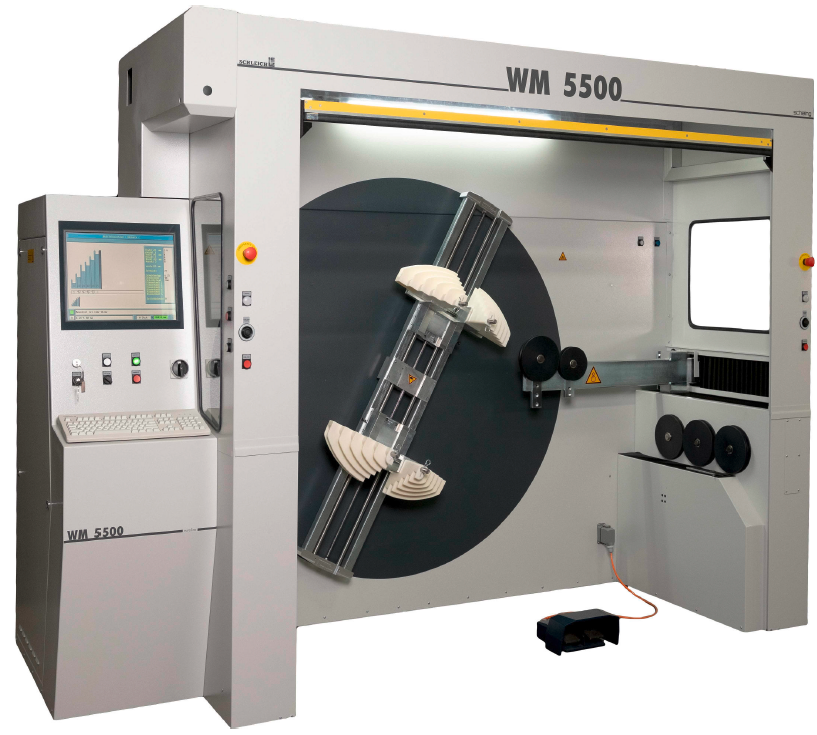

Scheiing's range of automatic winding machines (manufactured by Schleich in Germany) provide the shortest setup time with a user friendly interface to enable simple data entry via a PC interface enabling a wide range of winding options. Each winding machine is compatible with a wide range of accessories and formers which are interchangeable in a matter of seconds.

Technical Data

• Winding Speed; 5-50rpm, infinitely variable
• Rated winding torque; 2000Nm at 10rpm to 30rpm then decreasing linearly to 1/3
• Peak winding torque; 4000nM at 10rpm to 30nm then decreasing linearly to 1/3
• Coil Dimensions; max diameter 1900mm, Layering Width 540mm
• Controls; Integrated Graphical Winding Machine Control with built in flash fixed storage.

Special Accessories

• Device for insulation sleeving insertion.
• Individual wire monitoring for any number of parallel wires
• Four slot formers 4/11 and 4/24
• Six slot formers 6/24
• Reinforced adapter mandrels for winding without requiring front support
• Winding fixture for rectangular and diamond shape windings with standard formers
• Centric adjustable fixture for rectangular windings with 6 slot formers 6/25 without requiring front support
• Manufacturing of special formers according to drawing or sample
• Adjustable former for DC coils with built in layer winding program
• De-reeling and storage units
