Overview

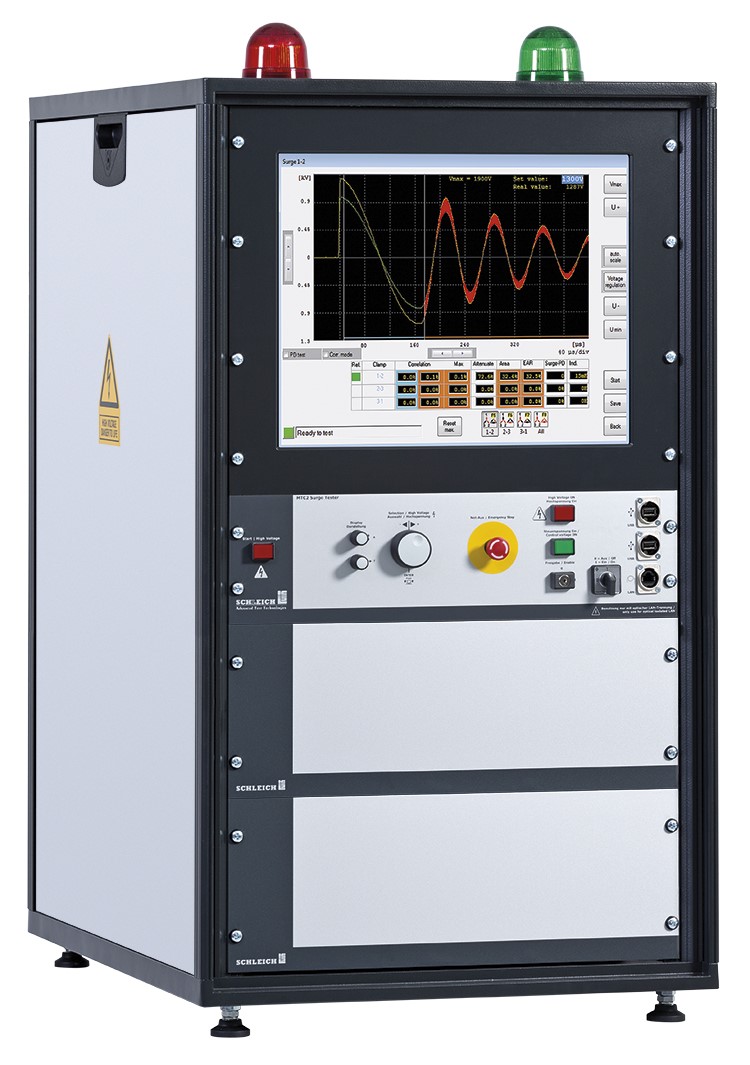

The MTC2 is a high-end surge voltage tester – no other tester offers such a variety of applications. With the MTC2 you precisely analyze coils, stators, armatures, etc. according to state-of-the-art technology – without compromise. Innovations, technical leadership and a patented surge voltage evaluation methods characterize the MTC2 surge voltage testers of the 6th generation. You can choose from a finely graded tester variety from 6 kV to 50 kV. Based on 25 years of experience, extensive know-how and a consistent optimization you purchase a state-of-the-art surge voltage tester.Key Features
- Class leading equipment features
- Inspection of motors and generators up to 500 MW
- Surge voltage up to 50 kV
- Surge energy 125 Joule
- High surge current 2.000 A
- Fastest rise time 60 ns
- Fully-integrated partial discharge test according to IEC 61934 and DIN EN 60034-18-41
- Digital surge voltage test with patented evaluation method
- Surge voltage with 100 nF/200 nF (device-dependent) and up to 2000 A surge current
- Partial discharge analysis to detect certain insulation faults according to standards
- Resistance measurement in 4-wire-technology with temperature compensation
- Insulation resistance test with automatic PI-measurement
- Inductance test | LCR inductance measuring bridge
- Fully automatic switchover between different test methods
- 4 winding connections (windings and neutral point) plus frame connection
- Automatic testing with GO/NO GO comparison
- Integrated armature test assistant, armature adapter and armature booster
- Remote-controlling of an AC high voltage tester and scanning the test results
- Integrated PC with Windows®
- Simple and intuitive operation by touch screen or mouse and keyboard
- Optional remote maintenance and calibration
- Database for numerous test plans and test results
- Large variety of accessories to support testing of all AC or DC motors and armatures.
